Ground Floor 1:50
First Floor 1:50
Second Floor 1:50
Sunday, April 21, 2013
Arch1201 Villa Savoye: the Part and the Whole
Site Plan

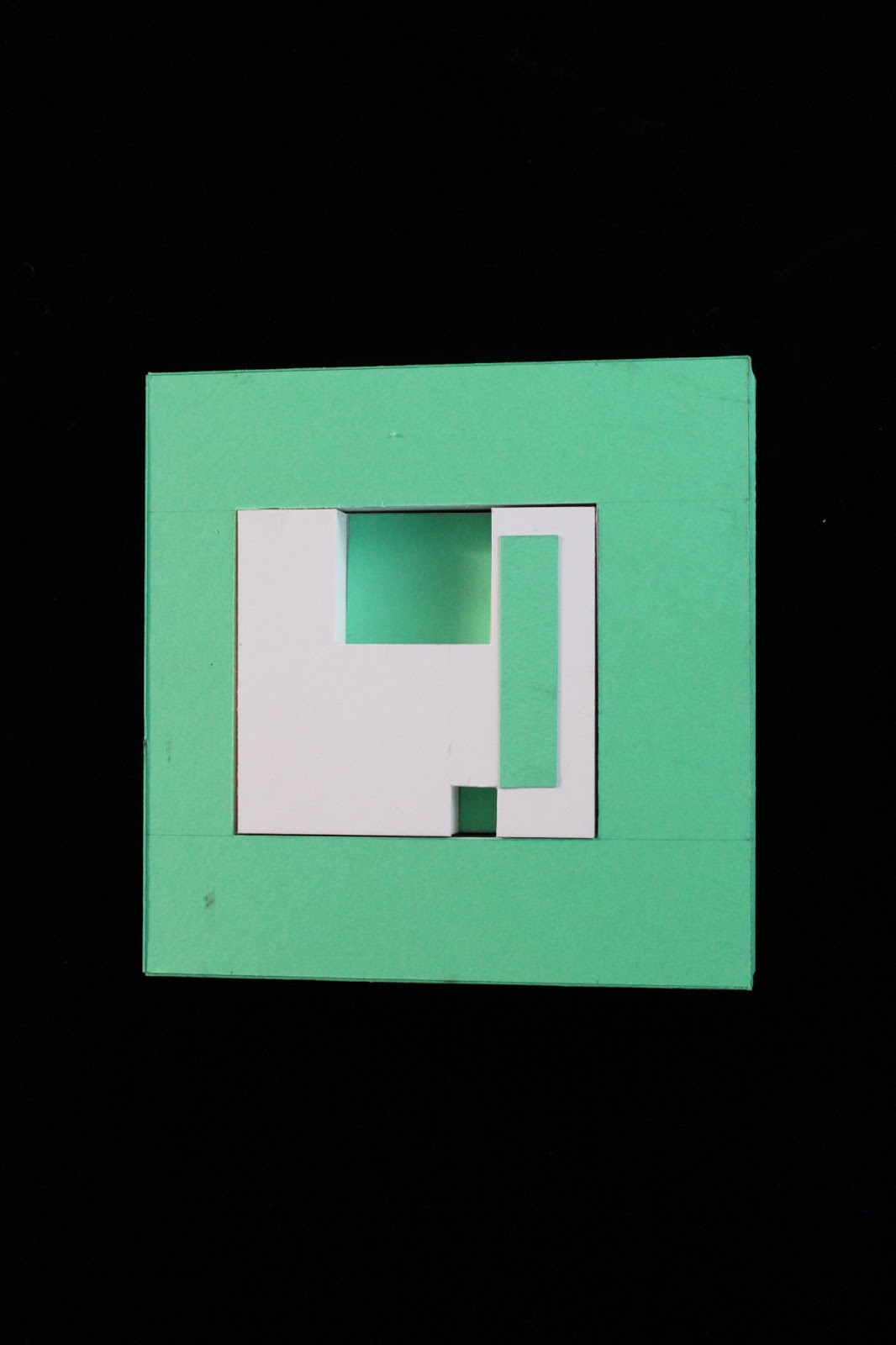

Model about the Part and the Whole 1:200
the relationship between the villa and the surrounded environment
ARCH1201 Villa Savoye Partb Public and Private
The Diagonal Arrangement of Public and Private Area
White Colored Area: Public Area
Black Colored Area: Private Area
Gray Colored Area: Stairs
Model for Private and Public concept 1:100
